PP S Spunbond Non Woven Fabric Bag agriculture cover farmer film fabric Non Woven Fabric Making Line
pp Spunbond Non-woven Fabric maikng Machine s series
1600/2400/3200/4200 MM PP S Spunbond Non-Woven Fabric Production Machine
3200 S Model
| Effective Width | 3200mm |
| Weight Range | 9 - 250 g / ㎡ |
| Out put daily | 8 - 10 ton |
| Machine speed | ≦ 150 m / min |
| Transformer | ≈ 360 KVA |
| Power Consumption | 650º - 700 º / Ton |
S Model (Packaging , Agricultural Cover )
| Working width | Fabric | Consumption | Annual output/Year |
| 1600mm | 9-250G/㎡ | 130KW | 1800T |
| 2400mm | 9-250G/㎡ | 180KW | 2200T |
| 3200mm | 9-250G/㎡ | 200KW | 3300T |
| 4000mm | 9-250G/㎡ | 300KW | 4400T |
| 4800mm | 9-250G/㎡ | 400KW | 5100T |
| Model | Effective Width | Weight Range | Output per day | Machine speed | Tranformer | Power consumption | Machine Size |
| HHM-1.6S | 1.6M | 9-250G/M2 | 4-6Ton | ≦150m/min | ≈200KVA | 650º-700º/Ton | 18M*8M*12M |
| HHM-2.4S | 2.4M | 9-250G/M2 | 5-7Ton | ≦150m/min | ≈250KVA | 650º-700º/Ton | 18M*10M*12M |
| HHM-3.2S | 3.2M | 9-250G/M2 | 8-10Ton | ≦150m/min | ≈315KVA | 650º-700º/Ton | 18M*15M*12M |
| HHM-4.0S | 4.0M | 9-250G/M2 | 11-13Ton | ≦150m/min | ≈360KVA | 650º-700º/Ton | 18M*18M*12M |
| HHM-4.8S | 4.8M | 9-250G/M2 | 12-15Ton | ≦150m/min | ≈400KVA | 650º-700º/Ton | 18M*22M*12M |
procees flow
Feeding(suction, dosing, and mixing) → Melt and extruding(with recycling extruder) → Filtering → Metering → Spinning → Quenching → Air drawing → Forming → Calendering → Winding → Slitting → Product.
Spunbond nonwoven production line componests:
Edge material screw and recovery device →Screw extruder → Filter → Measureing pump → Monomer suction device → spinning box ( Enka / Carson Spinneret ) → Cooling air box → stretching device → Netting machine → hot rolling mill → winding machine → slitting Machine .
Flow chart of spunbond production process .
Additives (recycling of scraps )→ Raw material → Melt extrusion → Filtration → Measurement → Spinning → cooling → Stretching → Netting → hot Rolling → Rewinding → Slitting → Finished Product

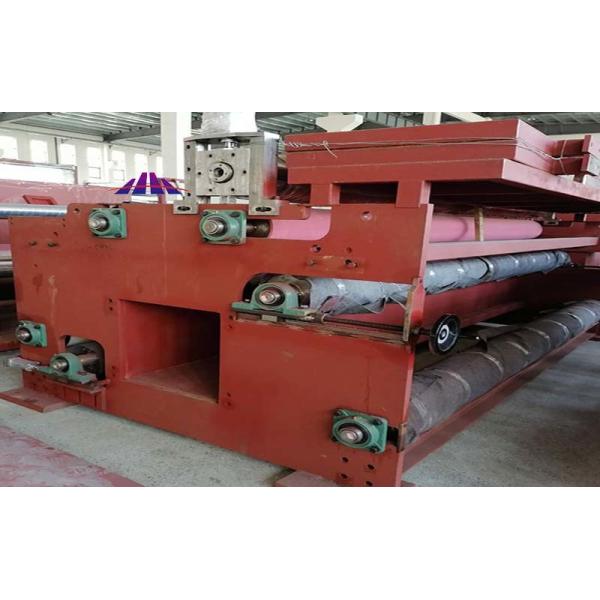

Main parts introduce
working process
CNC Center keep machinery parts precisely beyond customer request
.Packaging & Delivery
Packaging Details
Nude packing , wooden case is optional.
case packing:Carding machine, lapper and electric boxes wooden case packaged.
Other machines nude packaging.
Why choose US
1. High standard nonwoven machine specification.
2. Free inspection invitation before delivery.
3. your order safe and your money is safe.
4. Free door to door engineering service in 24 month.
5. CE Certification and ISO:9001 management system.
